Haulotte HA 23 RTJ O
Technical specifications (size, weight, etc.) may vary depending on the year of manufacture and modification! Please, specify this information when ordering the equipment!
- Working height: 22.5 m
- Platform lifting height: 20.5 m
- Load capacity: 450 kg
- Platform size: 0.91 × 2.44 m
- Length: 10.4 m
- Transport length: 9.4 m
- Width: 2.47 m
- Height – in folded position: 2.7 m
- Weight: 13,320 kg
- Wheelbase: 2.8 m
- Ground clearance: 48 cm
- Travel speed: 5 km/h

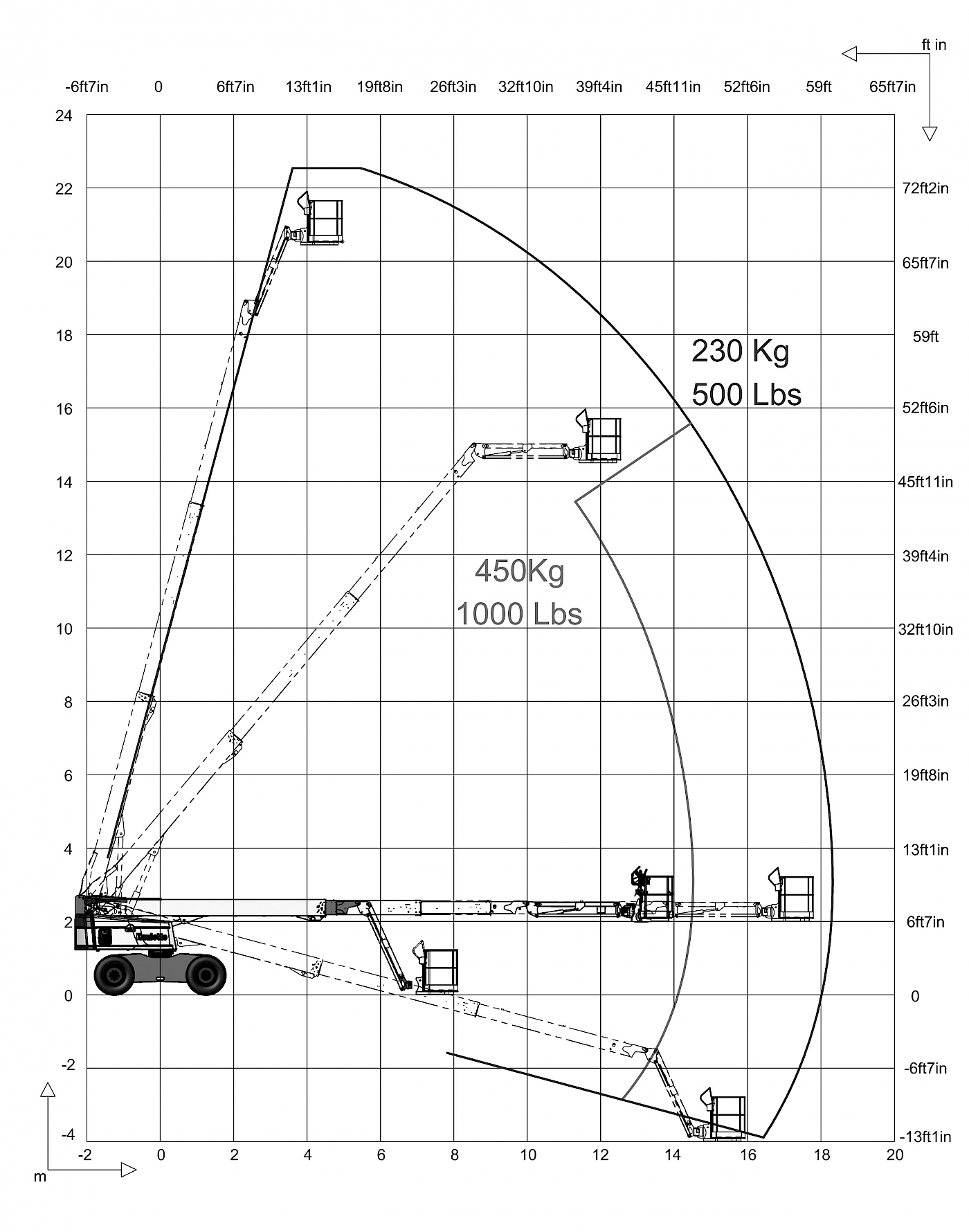

- Horizontal boom outreach: 17.5 m
- Outer turning radius: 4.35 m
- Rotation of the slewing ring: 355°
- Working platform rotation: 180 °
- Gradeability: 45%
- Maximum slope of the working surface: 4 °
- Diesel engine: 48 kW
- Fuel tank capacity: 150 l
