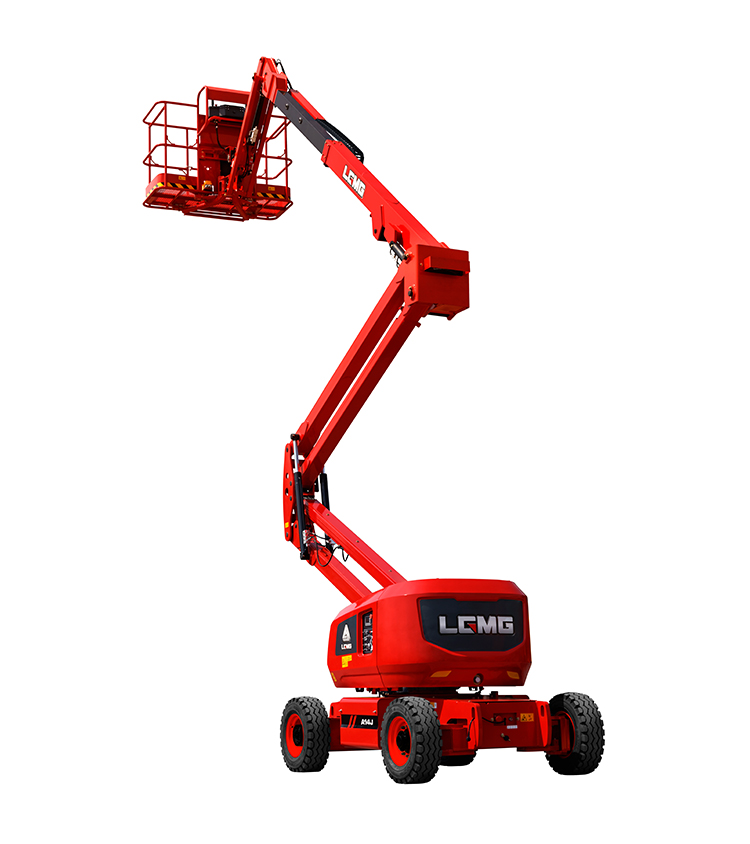

LGMG AR14J-2
Technical specifications (size, weight, etc.) may vary depending on the year of manufacture and modification! Please, specify this information when ordering the equipment!
- Working height: 15.9 m
- Platform lifting height: 13.9 m
- Load capacity: 300-450 kg
- Platform size: 0.76 × 1.83 m
- Transport length: 5.9 m
- Width: 2.3 m
- Height – in folded position: 2.24 m
- Weight: 7400 kg
- Wheelbase: 2.25 m
- Ground clearance: 33 cm
- Travel speed: 0.8 – 5 km/h

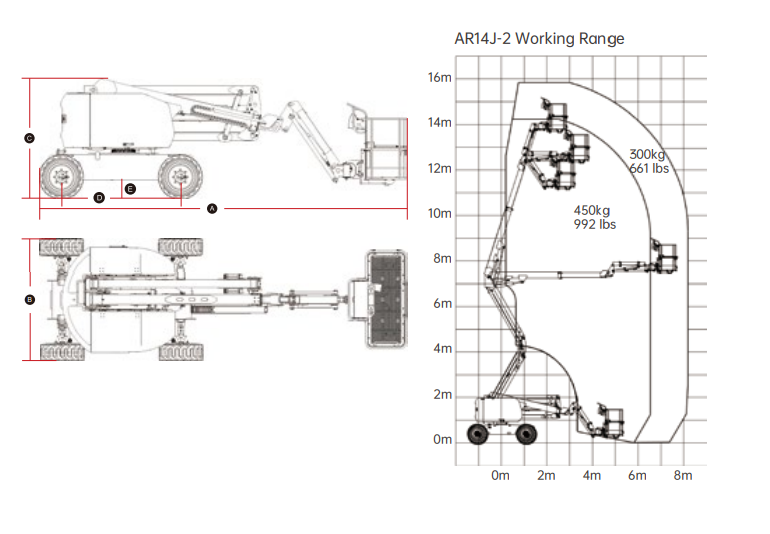

- Horizontal boom outreach: 7.7 m
- Max. bend height over obstacle: 7.5 m
- Outer turning radius: 5.7 m
- Rotation of the slewing ring: 355°
- Climbing height: 45 %
- Maximum slope of the working surface: 5 °
- Diesel engine: 18.2 kW
- Fuel tank capacity: 65 l
