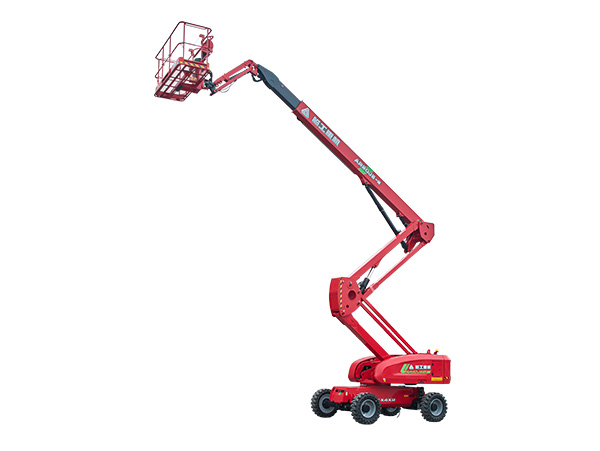

LGMG AR18J-2
Technical specifications (size, weight, etc.) may vary depending on the year of manufacture and modification! Please, specify this information when ordering the equipment!
- Working height: 20.12 m
- Platform lifting height: 18.12 m
- Load capacity: 260-350 kg
- Platform size: 0.76 × 1.83 m
- Transport length: 6.42 m
- Width: 2.5 m
- Height – in folded position: 2.47 m
- Weight: 7900 kg
- Ground clearance: 40 cm
- Travel speed: 0.8 – 5 km/h
- Horizontal boom outreach: 10.8 m
- Max. bend height over obstacle: 7.7 m
- Outer turning radius: 6.35 m
- Rotation of the slewing ring: 360°
- Working platform rotation: 180 °
- Climbing height: 45 %
- Maximum inclination of the working surface: 4 °
- Diesel engine: 18.2 kW
- Fuel tank capacity: 60 liters
