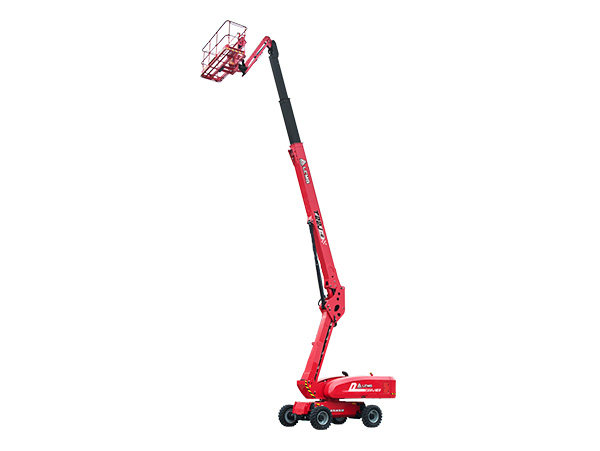

LGMG T22J-2
Technical specifications (size, weight, etc.) may vary depending on the year of manufacture and modification! Please, specify this information when ordering the equipment!

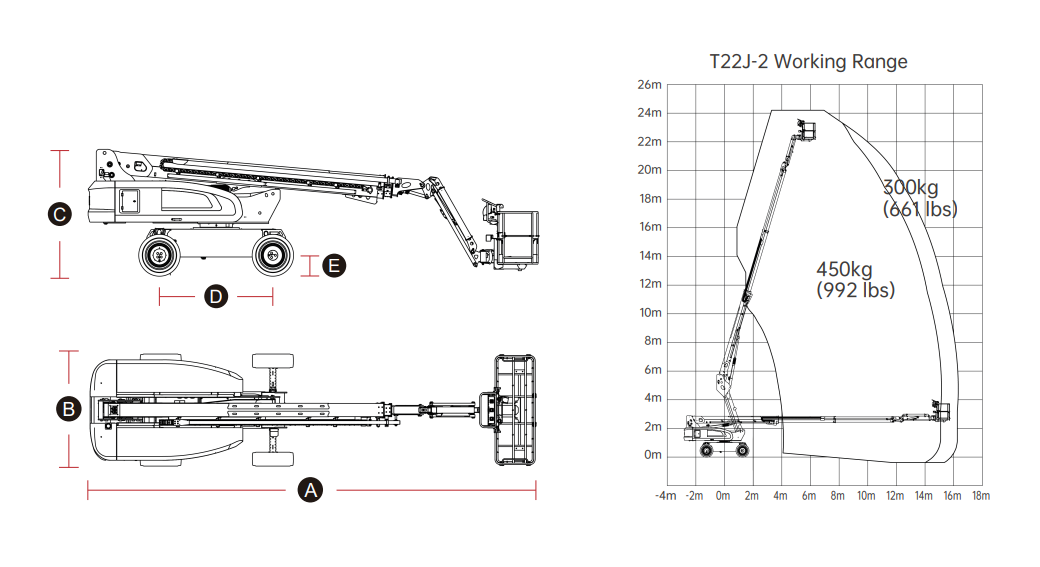

- Working height: 24.2 m
- Platform lifting height: 22.2 m
- Load capacity: 300-450 kg
- Platform size: 0.90 × 2.44 m
- Length: 9.86 m
- Transport length: 9.4 m
- Width: 2.5 m
- Height – in folded position: 2.76 m
- Weight: 11.060 kg
- Wheelbase: 2.51 m
- Ground clearance: 40 cm
- Travel speed: 0.8-5 km/h
- Horizontal boom outreach: 15.47 m
- Outer turning radius: 6.35 m
- Rotation of the slewing ring: 360°
- Working platform rotation: 180 °
- Gradeability: 45%
- Maximum slope of the working surface: 5 °
- Diesel engine: 25 kW
- Fuel tank capacity: 100 l
